Description

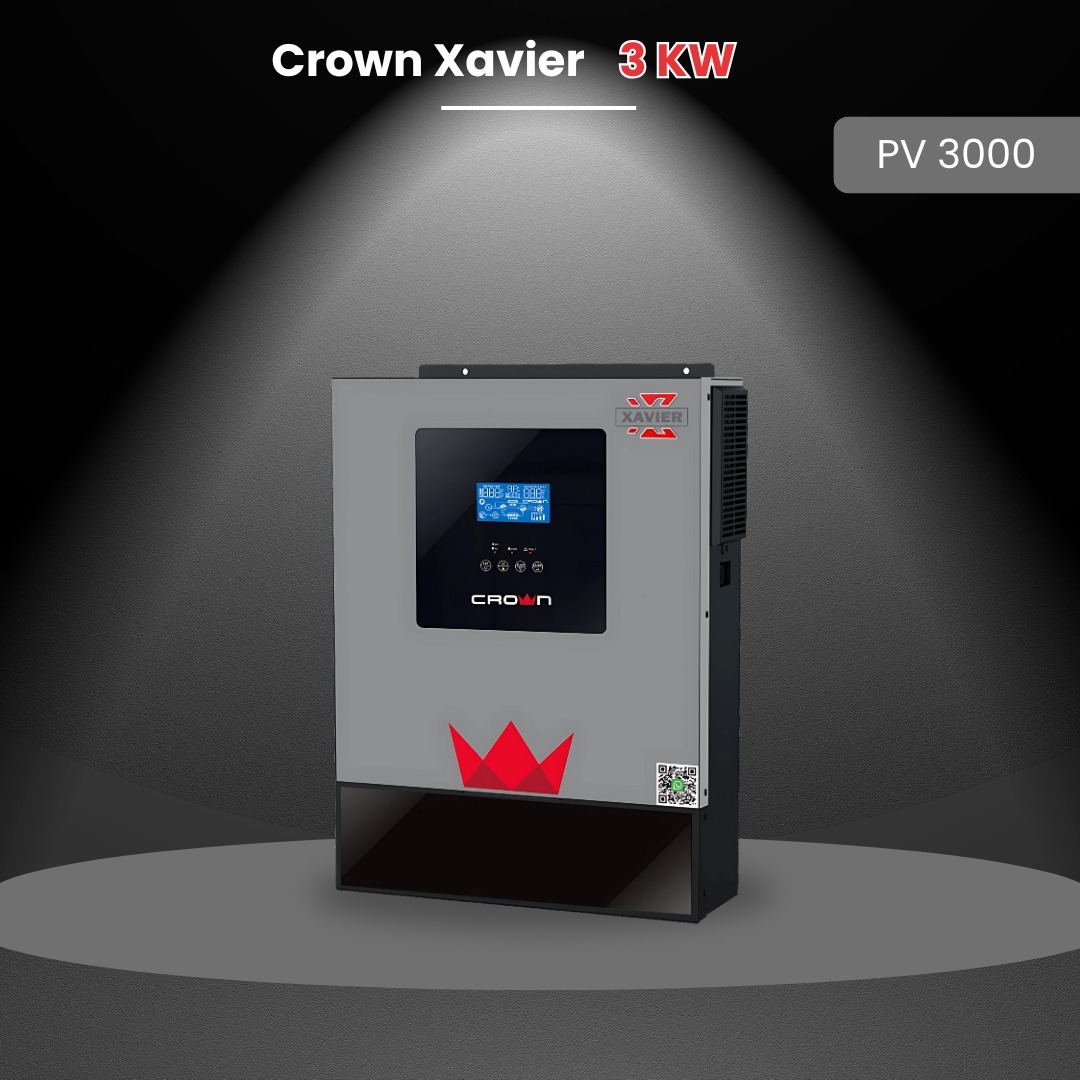

XAVIER 3KW Off Grid Inverter Specifications |
|
|---|---|
| Category | Specification |
| Model Name | XAVIER 3KW-PF 1.0 |
| Model Number | X-3KW-PF1 |
| Rated Power | 3000VA / 3000W |
| Surge Power | 6000VA |
| Input Voltage | 230 VAC |
| Selectable Voltage Range | 90–280V (Home) / 170–280V (PC) |
| Frequency | 50 / 60 Hz (Auto Sensing) |
| Waveform | Pure Sine Wave |
| Transfer Time | 10 ms (PC) / 20 ms (Home) |
| Efficiency (Peak) | 93% |
| Battery Voltage | 24 VDC |
| Floating Charge Voltage | 27 VDC |
| Overcharge Protection | 32 VDC |
| Solar Charger Type | MPPT |
| Max PV Array Power | 3000W |
| MPPT Range | 60–400 VDC |
| Max PV Open Circuit Voltage | 450 VDC |
| Max Solar Charge Current | 100A |
| Max AC Charge Current | 80A |
| Total Max Charge Current | 100A |
| Display | 2.5” LCD with Touch Pad |
| Communication | RS232 |
| Wi-Fi | Optional |
| Dimensions (D x W x H) | Not Specified |
| Weight | Not Specified |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
| Humidity | 5% to 95% RH (Non-condensing) |
| For technical details visit: Crown Micro Inverters | |
