Description

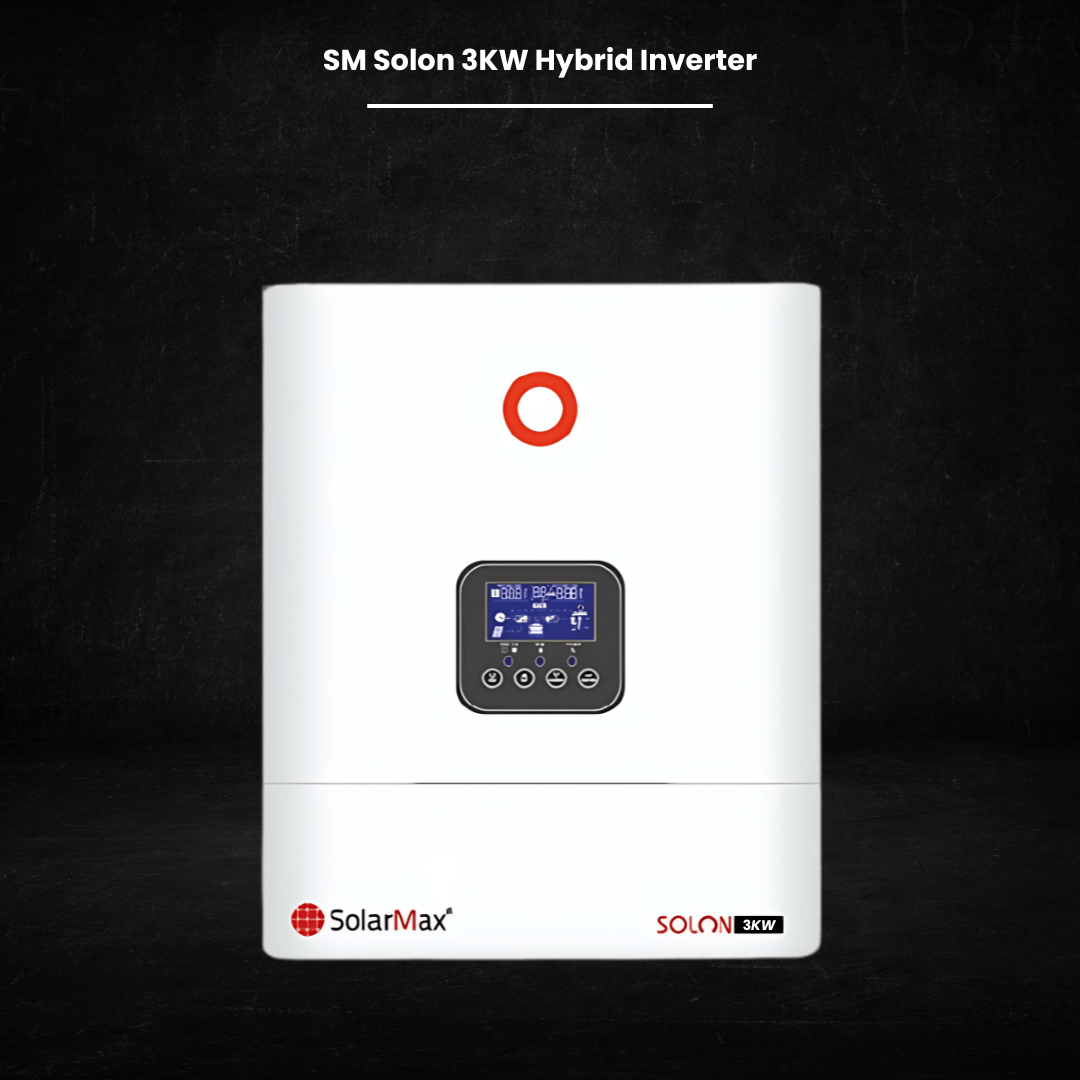

SolarMax Solon Dual 3KW Hybrid Inverter |
|
|---|---|
| Feature | Specification |
| Rated Power | 3000W |
| Input Voltage | 230 VAC |
| Selectable Voltage Range | 90-280 VAC (For Home Appliances) |
| Frequency Range | 50 Hz/60 Hz (Auto Sensing) |
| AC Voltage Regulation (Battery Mode) | 230 VAC ± 5% |
| Surge Power | 6000 VA |
| Waveform | Pure Sine Wave |
| Transfer Time | 10ms (Computers), 20ms (Home Appliances) |
| Battery Voltage | 24 VDC |
| Floating Charge Voltage | 27 VDC |
| Overcharge Protection | 30 VDC |
| Maximum Charge Current | 80 A |
| Maximum PV Array Power | 4000W |
| Maximum PV Input Voltage | 500 VDC |
| Maximum PV Input Current | 18A |
| MPPT Voltage Range | 60-450 VDC |
| Maximum Efficiency | 98% |
| Communication Interface | Built-in WiFi, RS485 |
| Display | LCD |
| Humidity | 5% to 90% (Non-condensing) |
| Operating Temperature | 0°C-55°C |
| Storage Temperature | -15°C to 60°C |
| Dimensions (D×W×H) | 128 × 300 × 363 mm (5.03 × 11.81 × 14.29 inches) |
| Net Weight | 6.3 KG |
| For technical details visit: solar max | |
