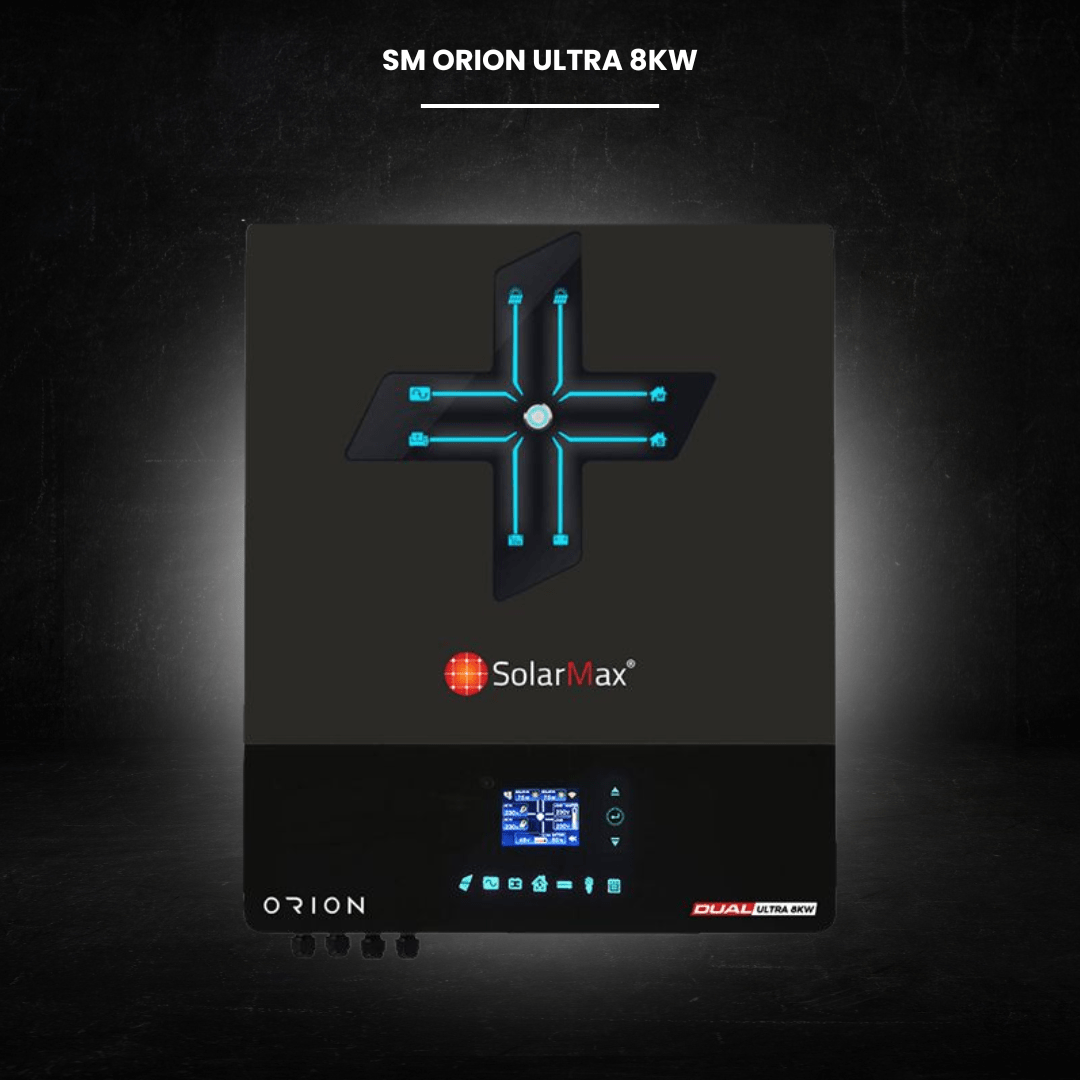

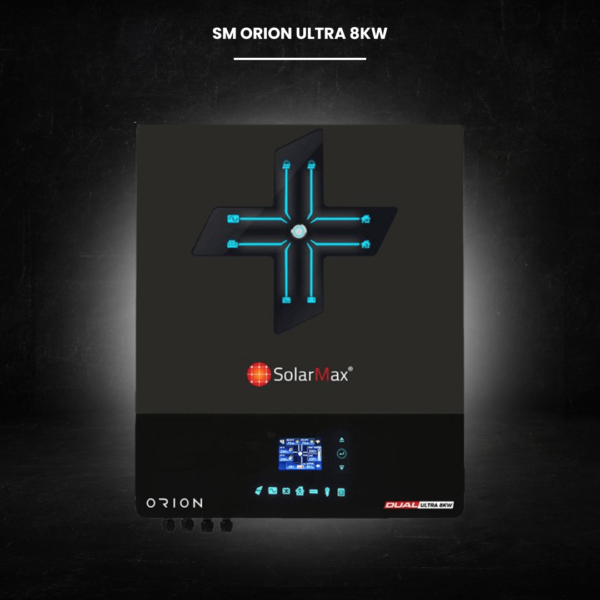

SM Orion Ultra 8KW Hybrid Inverter |
|
|---|---|
| Feature | Details |
| Brand | SM Orion |
| Model | SM Orion Ultra 8KW Hybrid Inverter |
| Rated Power | 8,000W |
| Battery Compatibility | Lead-acid & Lithium-ion |
| Battery Voltage | 48V DC |
| Floating Charge Voltage | 54V DC |
| Overcharge Protection | 66V DC |
| Max Charging Current | 150A |
| Max PV Input Power | 10,000W |
| MPPT Voltage Range | 90V – 450V DC |
| Max PV Input Voltage | 500V DC |
| Max PV Input Current | 27A x 2 (Max 40A) |
| MPPT Efficiency | 96% |
| AC Output Voltage | 220V/230V/240V AC |
| Surge Power | 16,000VA |
| Transfer Time | 10ms (PC), 20ms (Home Appliances) |
| Waveform | Pure Sine Wave |
| Safety Features | Overvoltage, Overcurrent, Short Circuit Protection |
| Communication Interfaces | USB, RS232, RS485, WiFi, Dry-contact |
| Monitoring Mode | LCD Display, LED Indicators |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
| Humidity | 5% – 95% (Non-condensing) |
| Dimensions (D x W x H) | 158.4 x 503.6 x 530.5 mm (6.2″ × 19.8″ × 20.9″) |
| Weight | 20 kg |
| Warranty | 2 Years Unlimited Parts Replacement |
| For technical details visit: solar max | |
