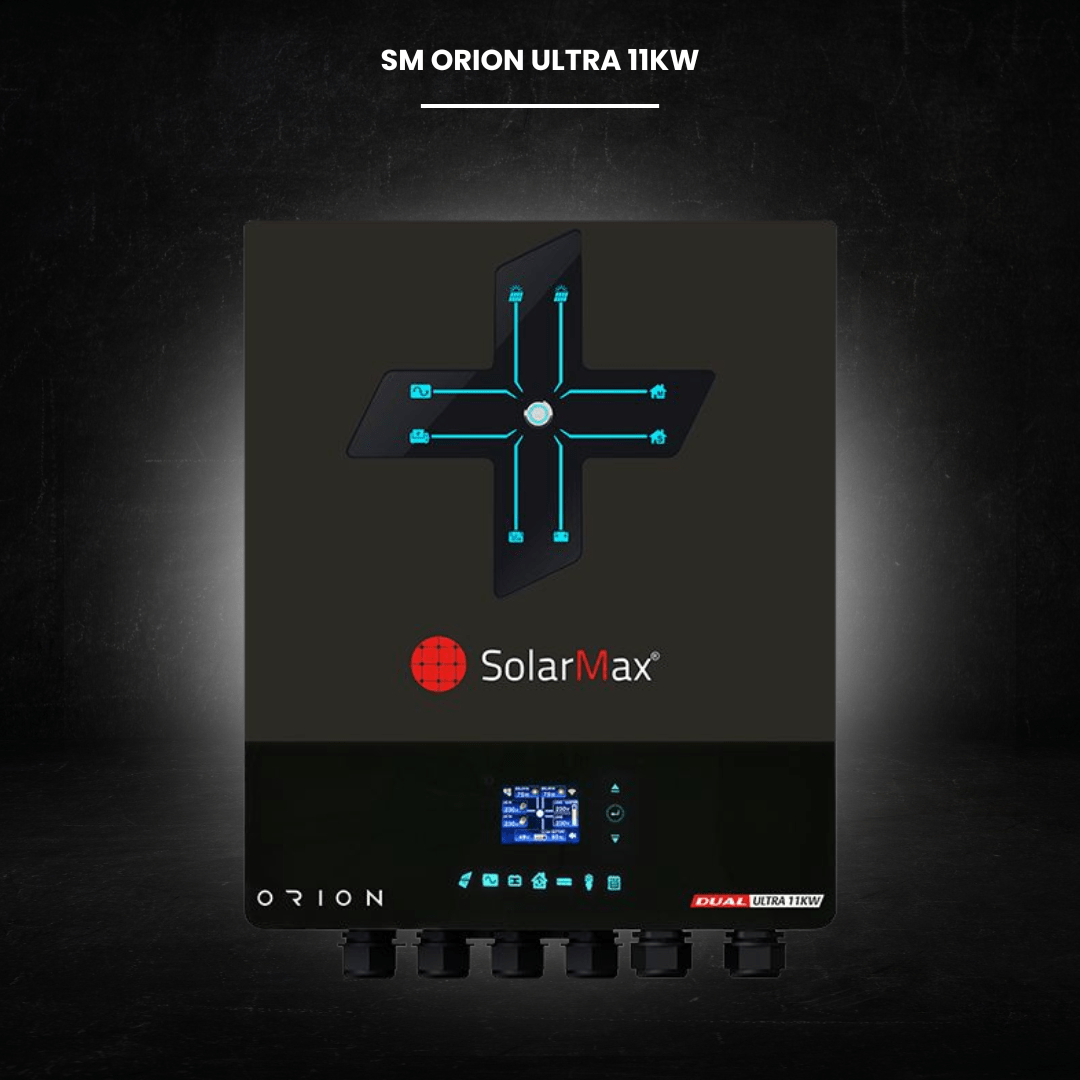

SM Orion Ultra 11KW Hybrid Inverter |
|
|---|---|
| Feature | Details |
| Brand | SolarMax |
| Model | SM Orion Ultra 11KW Hybrid Inverter |
| Rated Power | 11,000W |
| Battery Compatibility | 48V Lithium & Lead-Acid |
| MPPT Voltage Range | 90V – 450V DC |
| Max PV Input Power | 12,000W |
| Max PV Input Voltage | 500V DC |
| Max PV Input Current | 27A x 2 (Max 40A) |
| Surge Power | 22,000VA |
| AC Output Voltage | 230V ± 5% |
| Waveform | Pure Sine Wave |
| Max Charging Current | 150A |
| Communication Interface | USB, RS232, RS485, WiFi, Dry-contact |
| Monitoring | LED indicators, LCD Display |
| Operating Temperature | -10°C to 50°C |
| Dimensions (D x W x H) | 158.4 × 503.6 × 530.8 mm (6.2″ × 19.8″ × 20.9″) |
| Weight | 20 kg |
| Warranty | 2 Years Unlimited Parts Replacement |
| For technical details visit: solar max | |
