Description

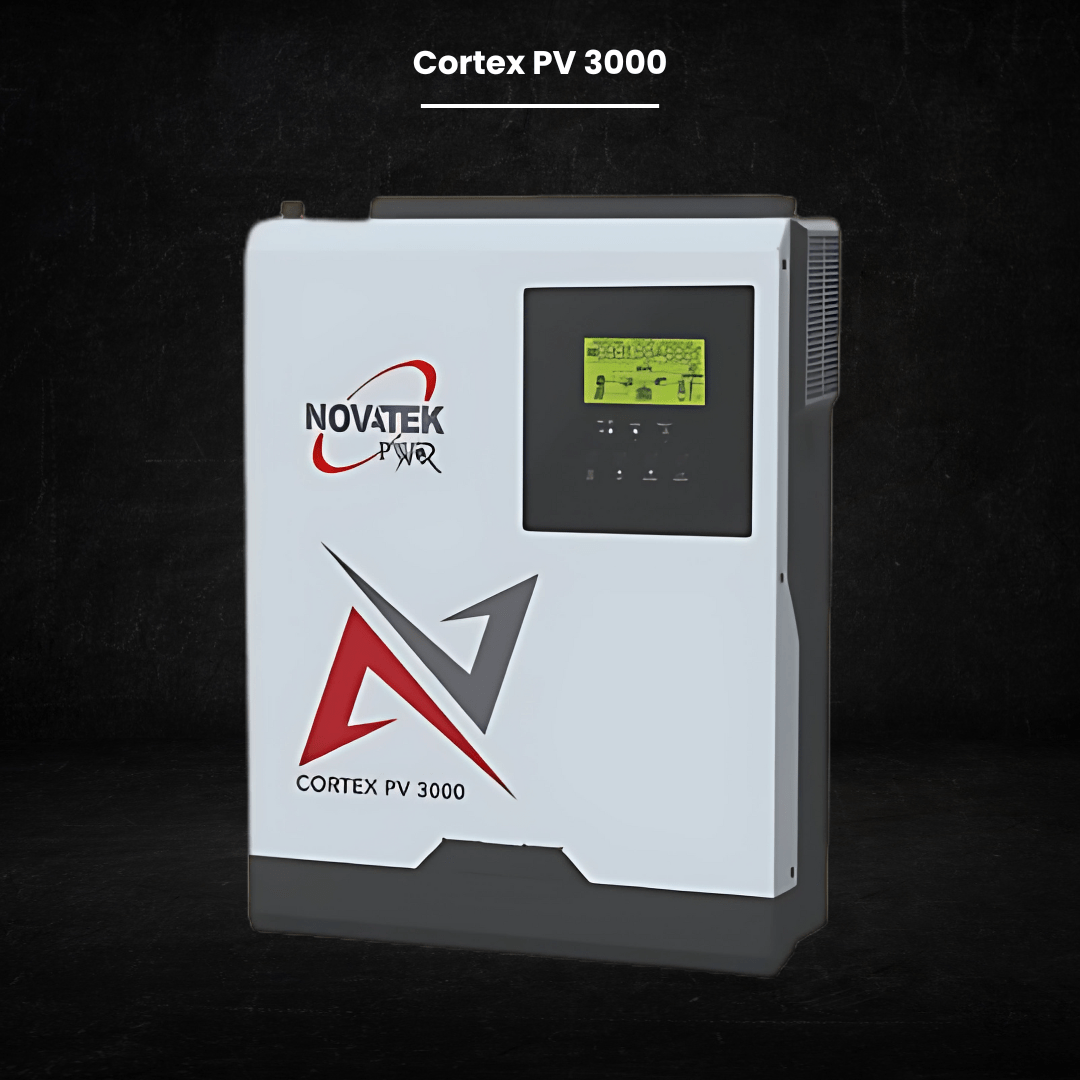

CORTEX PV 3000 Inverter |
|
|---|---|
| Feature | Specification |
| Rated Power | 2500VA / 2500W |
| Input Voltage | 230 VAC |
| Selectable Voltage Range | 170-280 VAC (PC) / 90-280 VAC (Home Appliances) |
| Frequency Range | 50Hz/60Hz (Auto Sensing) |
| AC Voltage Regulation (Battery Mode) | 230V ± 5% |
| Surge Power | 5000VA |
| Efficiency (Peak) | 93% |
| Transfer Time | 10ms (PC) / 20ms (Home Appliances) |
| Waveform | Pure Sine Wave |
| Battery Voltage | 24V DC |
| Floating Charge Voltage | 27V DC |
| Overcharge Protection | 32V DC |
| Solar Charger Type | MPPT |
| Maximum PV Array Power | 3000W |
| MPPT Range @ Operating Voltage | 60-400V DC |
| Maximum PV Array Open Circuit Voltage | 450V DC |
| Maximum Solar Charge Current | 80A |
| Maximum AC Charge Current | 80A |
| Maximum Charge Current | 80A |
| Dimensions (D × W × H) | 90 × 288 × 357 mm (3.54 × 11.34 × 14.06 in) |
| Net Weight | 7.1 kg |
| Communication Interface | RS232 |
| Humidity | 5% to 95% (Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
| For technical details visit: Novatek Power | |
