Description

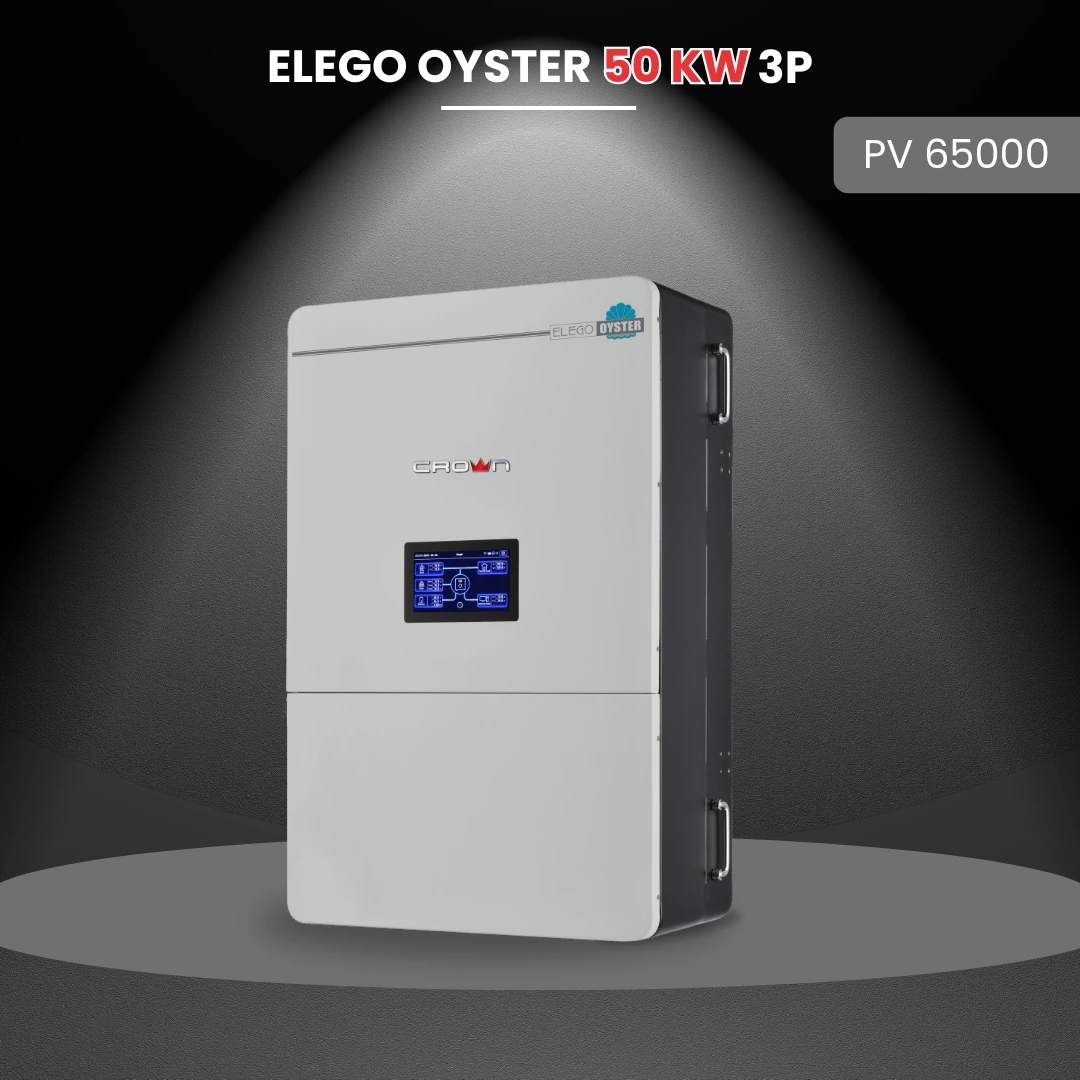

ELEGO OYSTER 50kW 3-Phase Hybrid Solar Inverter Specifications |
|
|---|---|
| Category | Specification |
| Rated Output Power | 50,000W |
| Maximum PV Input | 65,000W |
| MPPT Trackers | 4 independent MPPTs |
| Battery Mode Efficiency | >97% |
| Operation Modes | Grid-tie, Off-grid, Hybrid |
| Connectivity Options | Wi-Fi, RS-485, Dry Contact |
| PV Input (DC) | |
| Nominal DC Voltage | 720 VDC |
| Max DC Voltage | 1000 VDC |
| MPPT Voltage Range | 350 VDC – 900 VDC |
| Number of MPPTs | 4 (36A each) |
| Strings per MPPT | 2 per tracker |
| Grid-Tie Output (AC) | |
| Nominal Voltage | 230 VAC (P-N) / 400 VAC (P-P) |
| Output Frequency | 47.5–51.5 Hz / 59.3–60.5 Hz |
| Nominal Output Current | 73 A per phase |
| Power Factor | 0.9 lag to 0.9 lead |
| Max Conversion Efficiency | >96% |
| European Efficiency | >95% |
| Off-Grid Operation | |
| AC Start-Up Voltage | 120–140 VAC |
| Auto Restart Voltage | 180 VAC |
| Max AC Input Current | 50 A |
| Battery Mode Output | Pure Sine Wave |
| Output Efficiency (DC to AC) | >97% |
| Battery & Charger | |
| Battery Voltage Range | 300–900 VDC |
| Max Charging Current | 100 A |
| Physical & Environmental | |
| Dimensions (D*W*H) | 290 x 580 x 900 mm |
| Net Weight | 80 KG |
| Humidity | 0–100% RH (Non-condensing) |
| Operating Temperature | -25°C to 60°C (Power derating >45°C) |
| Applications | Factories, solar farms, commercial buildings, industrial setups, and areas with unstable grid power |
| Why Choose This Model? | High input capacity, reliable charging, extreme weather resilience, and hybrid versatility |
| For technical details visit: Crown Micro Inverters | |
