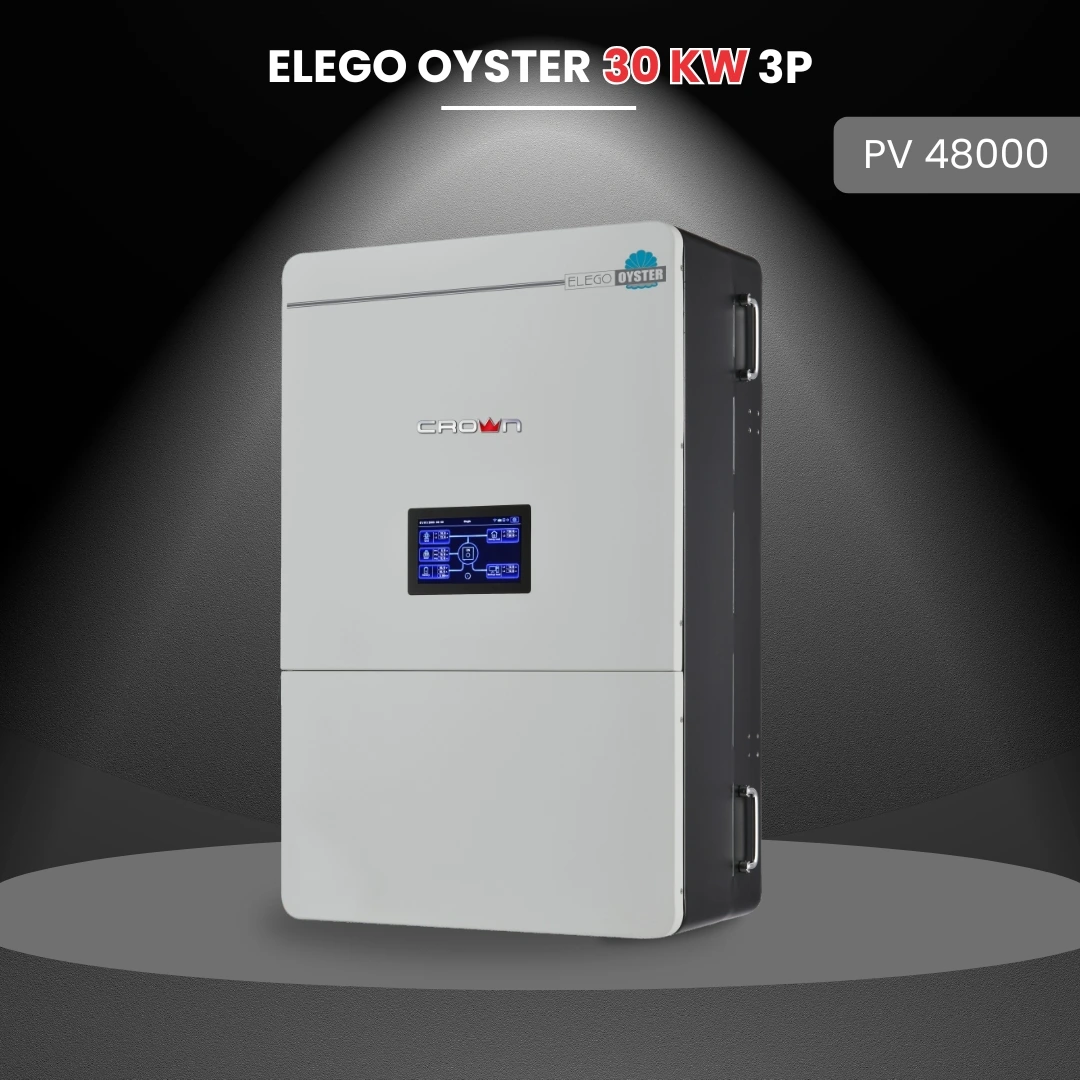

ELEGO OYSTER 30kW 3-Phase Hybrid Solar Inverter Specifications |
|
|---|---|
| Category | Specification |
| Model | ELEGO-OYSTER-30KW-3P |
| Rated Output Power | 30,000 W |
| Maximum PV Input Power | 48,000 W |
| Maximum Charging Power | 30,000 W |
| Nominal DC Voltage | 720 VDC |
| Max DC Voltage | 1000 VDC |
| Start-up / Initial Feeding Voltage | 320 VDC / 350 VDC |
| MPPT Voltage Range | 350 VDC ~ 900 VDC |
| MPPT Trackers / Max Input Current | 3 / A: 36A, B: 36A, C: 36A |
| Strings per MPPT | A: 2, B: 2, C: 2 |
| AC Output Voltage (Nominal) | 230 VAC (P-N), 400 VAC (P-P) |
| Output Voltage Range | 184 ~ 265 VAC per phase |
| Output Frequency Range | 47.5 ~ 51.5 Hz / 59.3 ~ 60.5 Hz |
| Nominal Output Current | 43.5 A per phase |
| Power Factor Range | 0.9 lag ~ 0.9 lead |
| Max Conversion Efficiency (DC/AC) | >96% |
| European Efficiency | >95% |
| AC Input Voltage (Start-up) | 120–140 VAC per phase |
| Auto Restart Voltage | 180 VAC per phase |
| Acceptable AC Input Range | 170–200 VAC per phase |
| Max AC Input Current | 50 A |
| Battery Output Voltage | 230 VAC (P-N), 400 VAC (P-P) |
| Output Frequency (Battery Mode) | 50Hz / 60Hz (Auto Sensing) |
| Output Waveform | Pure Sine Wave |
| Efficiency (DC to AC) | >97% |
| Battery Voltage Range | 300 ~ 900 VDC |
| Max Charging Current | 100 A |
| Dimensions (D x W x H) | 290 x 580 x 900 mm |
| Net Weight | 80 kg |
| Communication Ports | RS-485, Dry Contact, Wi-Fi |
| Humidity | 0–100% RH (Non-condensing) |
| Operating Temperature | -25°C to 60°C (>45°C power derating) |
| For technical details visit: Crown Micro Inverters | |
