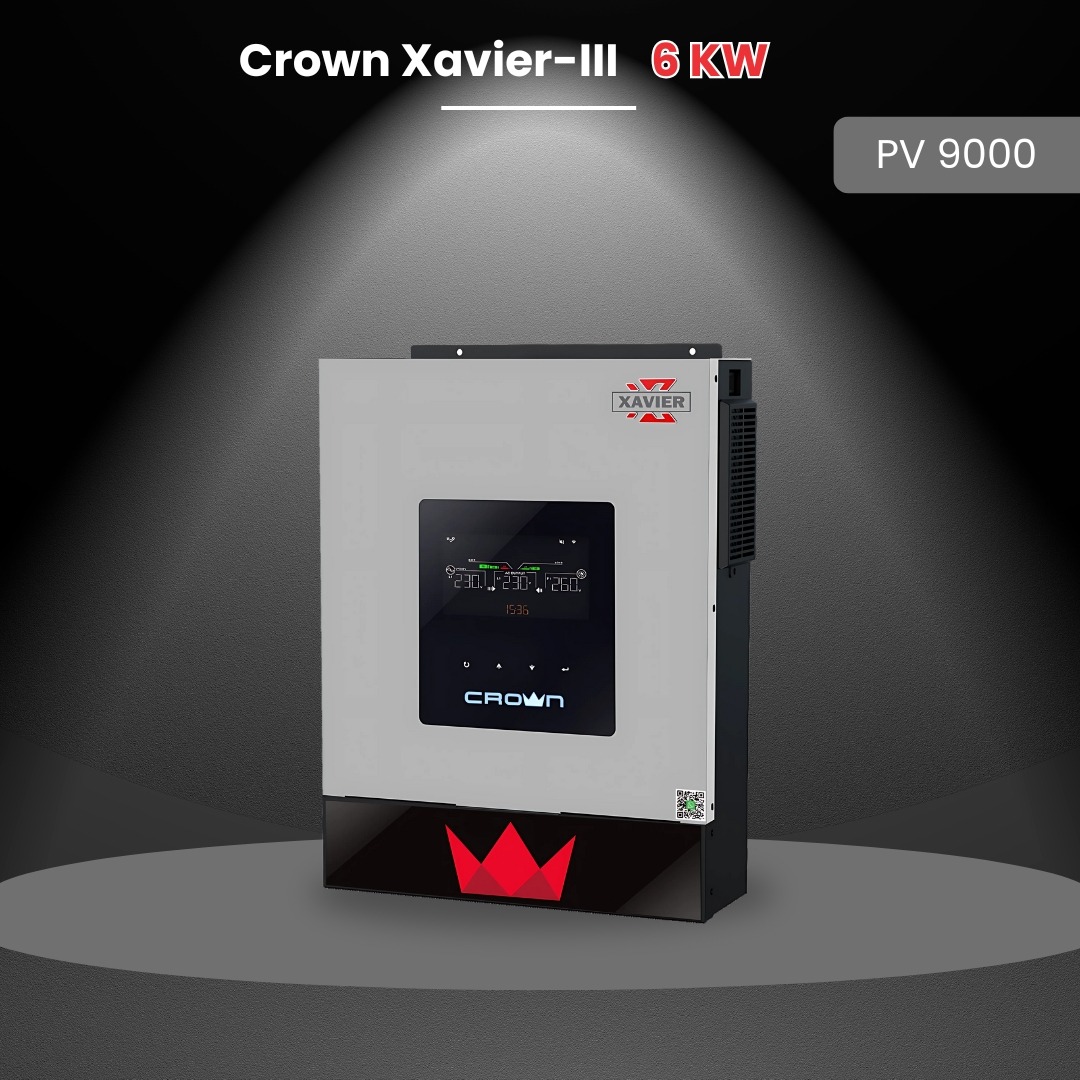

Crown Xavier-III 6KW Hybrid Solar Inverter Specifications |
|
|---|---|
| Category | Specification |
| Model | XAVIER-III-6KW |
| Rated Power | 6000VA / 6000W |
| Input Voltage | 230 VAC |
| Selectable Voltage Range | 170–280V (PCs) / 90–280V (Home Appliances) |
| Frequency Range | 50 Hz / 60 Hz (Auto Sensing) |
| AC Voltage Regulation (Battery Mode) | 230VAC ± 5% |
| Surge Power | 12000VA |
| Efficiency (Peak) | 93% |
| Transfer Time | 10ms (PCs) / 20ms (Home Appliances) |
| Waveform | Pure Sine Wave |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 63 VDC |
| Solar Charger Type | MPPT |
| Max PV Array Power | 9000W |
| MPPT Operating Voltage Range | 60–450 VDC |
| Max PV Open Circuit Voltage | 500 VDC |
| Max Solar Charge Current | 120A |
| Max AC Charge Current | 120A |
| Max Total Charge Current | 120A |
| Dimensions (D x W x H) | 107 x 322.6 x 420.3 mm |
| Net Weight | 10.5 kg |
| Communication Interfaces | Wi-Fi / RS-485 / RS-232 / CAN |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| For technical details visit: Crown Micro Inverters | |
