Description

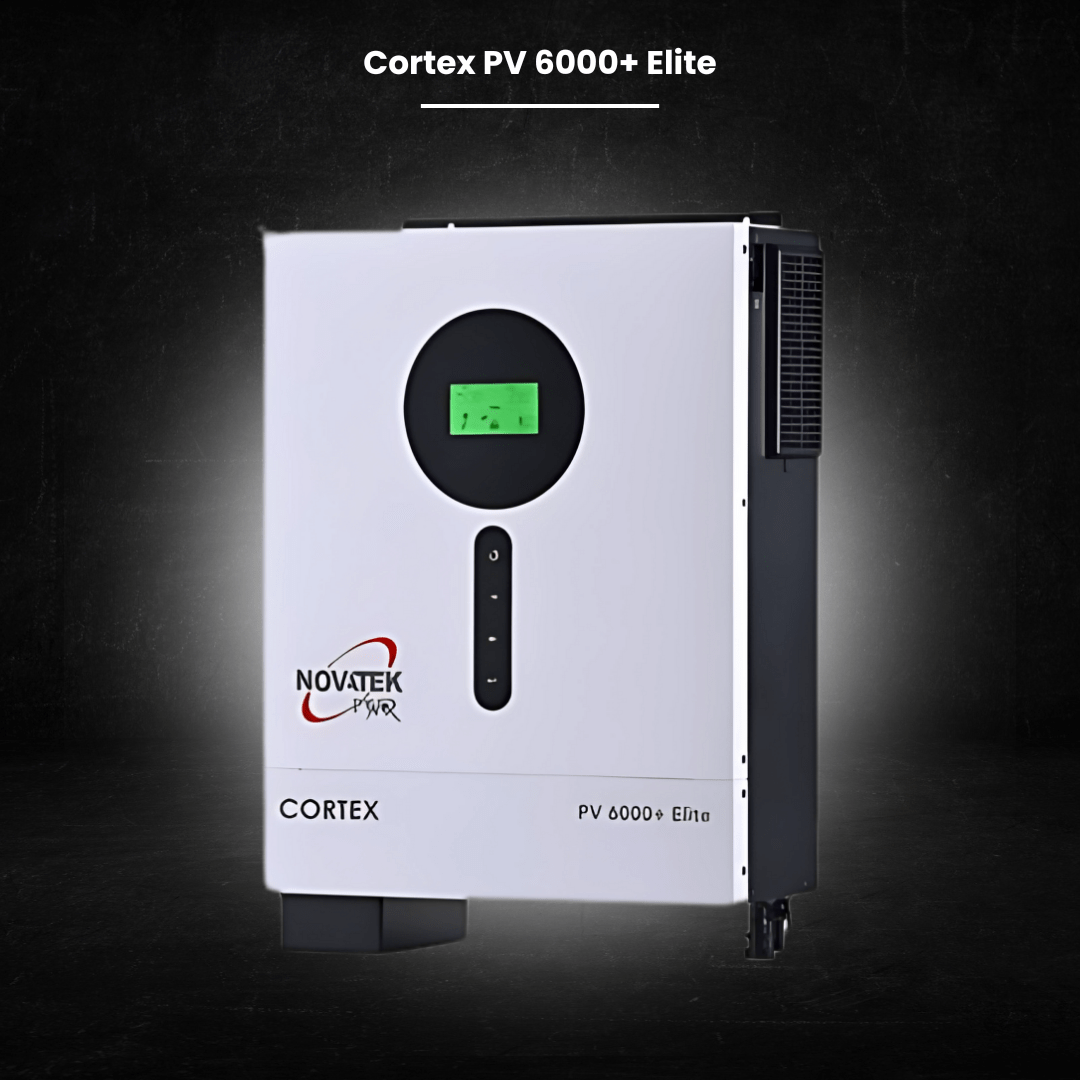

Cortex PV 6000 Plus Elite Hybrid Inverter |
|
|---|---|
| Feature | Specification |
| Model | Cortex PV 6000+ Elite |
| Rated Power | 6000VA / 6000W |
| Voltage | 230 VAC |
| Selectable Voltage Range | 170-280 VAC (PCs) / 90-280 VAC (Home Appliances) |
| Frequency Range | 50Hz / 60Hz (Auto Sensing) |
| AC Voltage Regulation (Battery Mode) | 230V ± 5% |
| Surge Power | 12000VA |
| Efficiency (Peak) | 93% |
| Transfer Time | 10ms (PCs) / 20ms (Home Appliances) |
| Waveform | Pure Sine Wave |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 63 VDC |
| Solar Charger Type | MPPT |
| Maximum PV Array Power | 6000W |
| MPPT Range @ Operating Voltage | 60 – 450 VDC |
| Maximum PV Input Current | 27A |
| Maximum Solar Charge Current | 120A |
| Maximum AC Charge Current | 100A |
| Maximum Charge Current | 120A |
| Dimensions (D x W x H) | 107 x 322.6 x 420.3 mm (4.21 x 12.70 x 16.54 in) |
| Net Weight | 10.5 kg |
| Communication Interface | RS232 / RS485 / Optional WiFi |
| Humidity | 5% to 95% RH (Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
| For technical details visit: Novatek Power | |
