Description
For technical details visit: Novatek Power

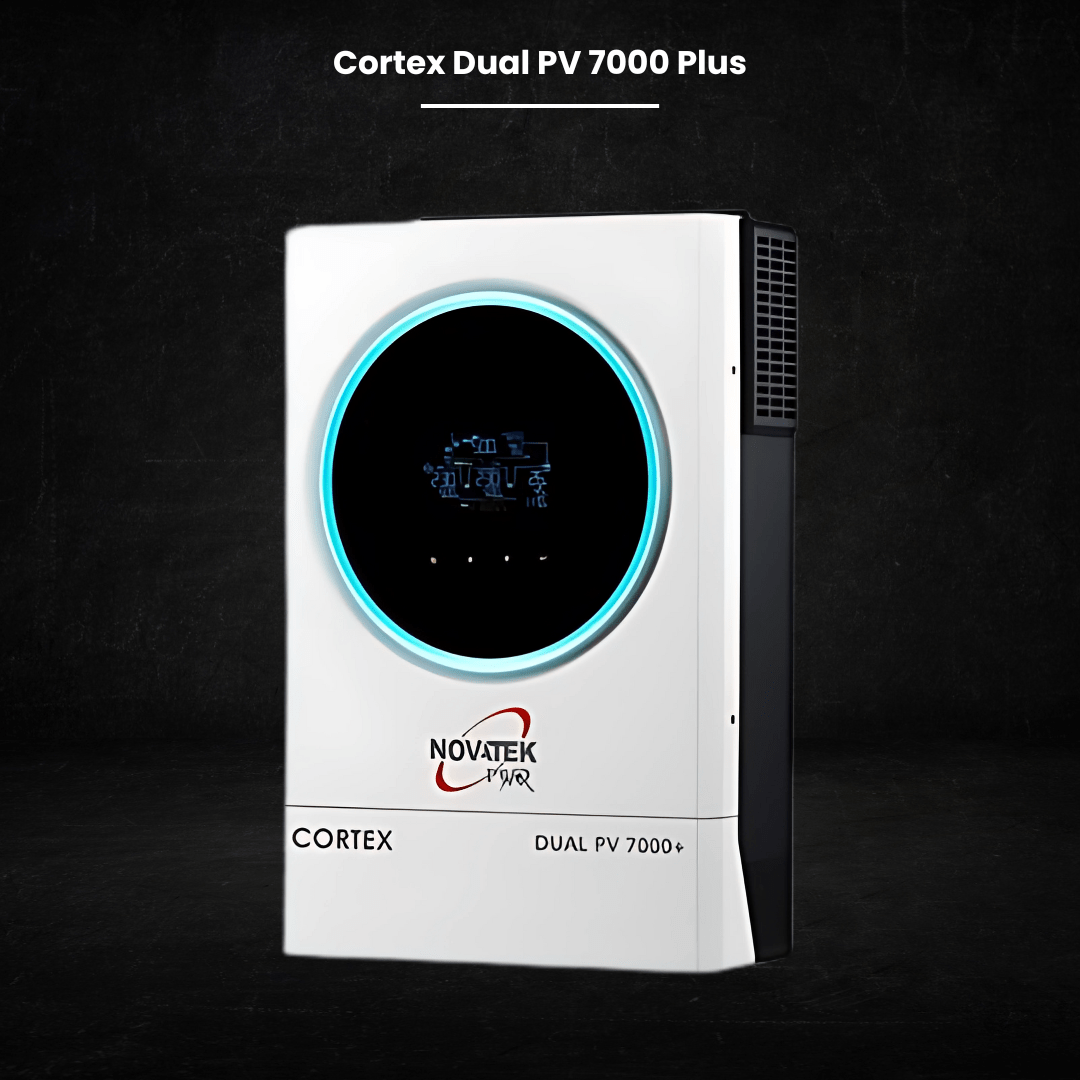

Cortex Dual PV 7000 Plus Hybrid Inverter |
|
|---|---|
| Feature | Specification |
| Model | Cortex Dual PV 7000 Plus |
| Phase | 1-phase in / 1-phase out |
| Maximum PV Input Power | 7000W |
| Rated Output Power | 6000W |
| Maximum Charging Power | 6000W |
| AC Start-up Voltage / Auto Restart Voltage | 120-140 VAC / 180 VAC |
| Acceptable Input Voltage Range | 90-280 VAC or 170-280 VAC |
| Maximum AC Input Current | 40A |
| Maximum DC Voltage | 500 VDC |
| MPP Voltage Range | 120-430 VDC |
| Number of MPP Trackers / Max Input Current | 1 / 27A |
| Nominal Output Voltage | 220/230/240 VAC |
| Output Waveform | Pure Sine Wave |
| Efficiency (DC to AC) | 93% |
| Parallel Function | Yes, up to 9 units |
| Communication Ports | USB / RS232 / RS485 / Wi-Fi / Dry-Contact |
| Humidity | 0 ~ 90% RH (Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Dimensions (D x W x H) | 140 x 295 x 468 mm (5.51 x 11.61 x 18.42 in) |
| Net Weight | 12 kg |
